Electrical isolation
Adds a thin dielectric interface around compact electrical and electronic features.
ATR-PIA SERIES · SILICONE-FREE ADHESIVE SYSTEM
Polyimide Acrylic Adhesive Tape
Amber polyimide film with heat-resistant acrylic pressure-sensitive adhesive for thin electrical insulation, stable securing and precision converting.
BackingPolyimide film backing
AdhesiveHeat-resistant acrylic adhesive
SupplyRolls & converted parts
01 · THE MATERIAL SYSTEM
Polyimide performance with a silicone-free adhesive choice.
ATR-PIA combines a thin polyimide carrier with acrylic pressure-sensitive adhesive where electrical insulation, dimensional control and silicone-free processing are important.
The film contributes the dielectric and mechanical barrier. The acrylic adhesive supports stable contact on clean, compatible surfaces. Temporary removal is process-dependent and must not be assumed from the backing alone.
02 · PERFORMANCE IN CONTEXT
What this construction helps an engineer control.
Silicone-free processing
Helps address processes where silicone contamination must be reduced or avoided.
Stable fixation
Acrylic PSA supports securing on prepared, compatible surfaces.
Mechanical integrity
Polyimide contributes tensile, puncture and dimensional stability with limited bulk.
Precision converting
The stable film construction supports narrow slitting, laminating and die-cut presentation.
03 · APPLICATION DIRECTIONS
See the tape at its functional interface.
Representative tasks are drawn from the supplied product documentation. They identify the tape role without prescribing a universal customer construction.
WINDING INSULATION
Film-capacitor winding
Provides a thin insulating and securing interface within a validated winding construction.
ELECTRONIC PROCESSING

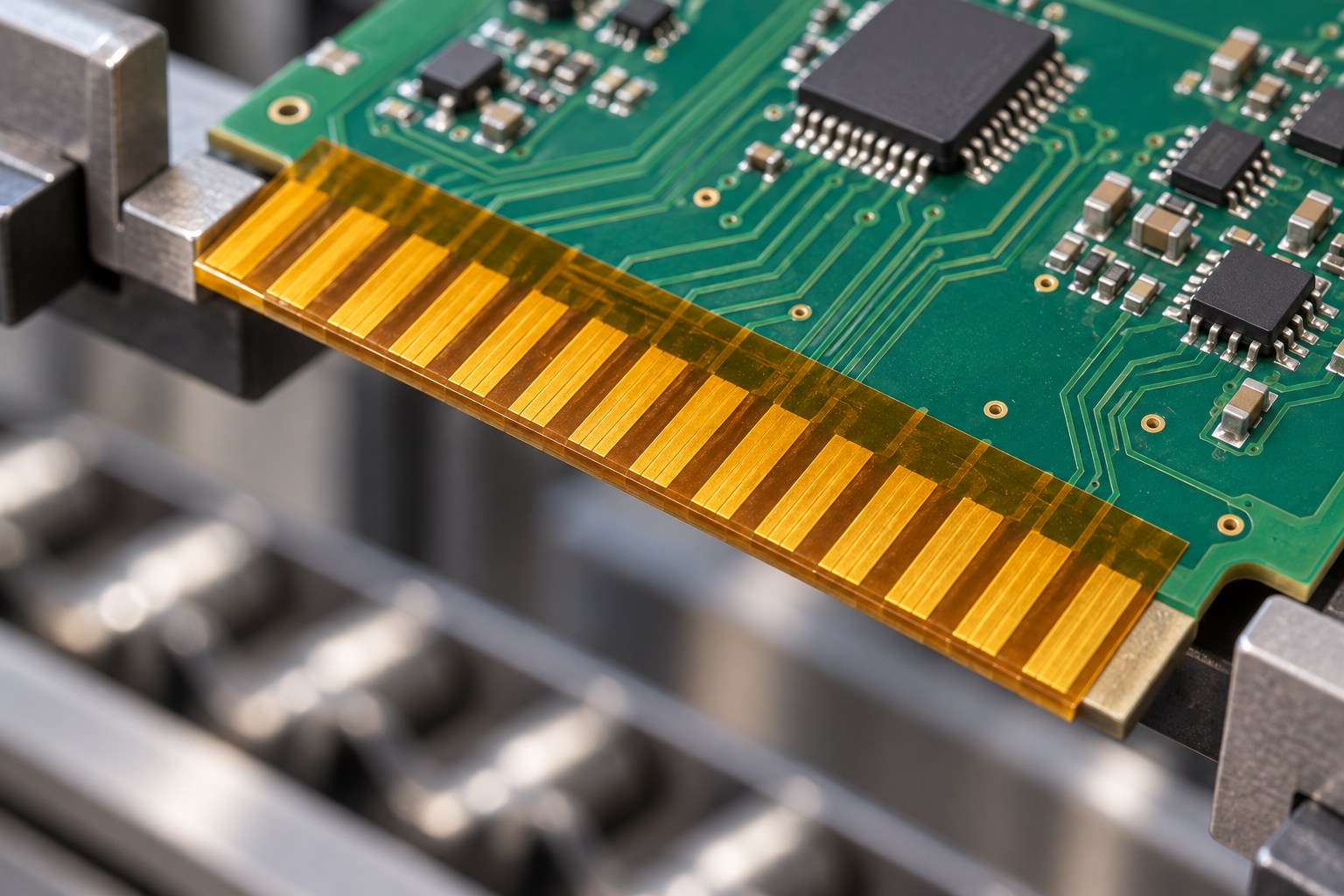

PCB contact masking
Protects selected contact regions during an approved process profile; temperature, dwell and removal require verification.
ELECTRICAL ASSEMBLY
Transformer coil insulation
Supports local insulation and securing without prescribing a universal winding method.
LOCAL INSULATION
Battery component protection
Creates a thin insulating barrier at selected tabs, edges or cell interfaces after pack-level validation.
Adhesion, removability and electrical suitability must be verified on the actual substrate and intended time-temperature profile.

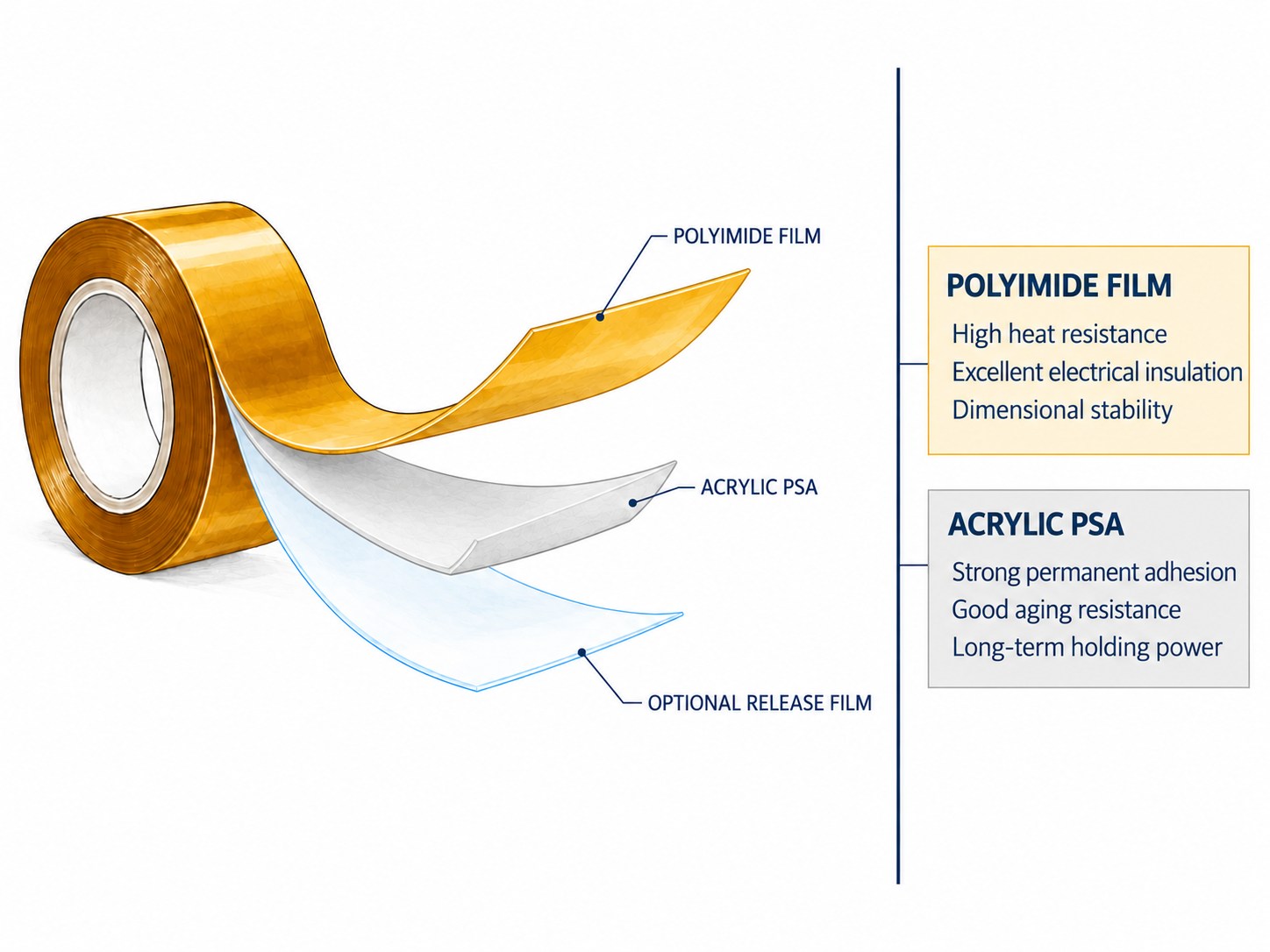

04 · TAPE CONSTRUCTION
Backing and adhesive designed as one system.
The primary construction is polyimide film plus heat-resistant acrylic PSA. An optional liner may be used for converting and automated placement.
- Polyimide filmDielectric support, thermal stability and mechanical integrity.
- Heat-resistant acrylic PSAStable fixation on clean, compatible surfaces.
- Optional release linerA converting aid for die-cutting or automated dispensing.
Illustration is enlarged for identification and does not represent actual layer-thickness ratio.
05 · SELECTION CONTEXT
The right grade starts with the process.
Bonding surface
Material, finish, cleanliness and surface energy
Thermal profile
Peak temperature, dwell time and repeated exposure
Application geometry
Flat face, edge, curve, winding or converted shape
Functional duty
Mask, insulate, secure, protect or reinforce
End condition
Remain in the assembly or remove after processing
Supply format
Width, length, core, liner, geometry and packing
06 · SUPPLY & CONVERTING
From master roll to placement-ready part.
Available from production-width rolls to slit rolls and converted parts. Final width, length, core, liner and packing are confirmed for the customer process.
- Width
- Slit and customised widths
- Length
- Standard or customised roll length
- Core
- 38 mm or 76 mm options
- Packaging
- Cartons and pallets
07 · APPLICATION PATHWAYS
Continue from the tape task to the wider material system.
01
Motor & Transformer
Polyimide-backed electrical insulation and stable acrylic securing in selected winding and connection zones.
Explore application →02Wire & Cable
Thin insulation and fixation of selected leads and cable features on compatible surfaces.
Explore application →03Electronics & Precision Converting
Insulating and converted placement features using an acrylic adhesive system; masking and removal require separate validation.
Explore application →04Battery & New Energy
Local insulation and securing at selected tabs, edges or component interfaces in the validated battery assembly.
Explore application →OTHER ATERANE PRODUCTS
Compare adjacent tape constructions.
ATR-PET-S SeriesPolyester Silicone Adhesive Tape
PET film tape with heat-resistant silicone pressure-sensitive adhesive for temporary process masking and surface protection.
View product →
ATR-PET SeriesPolyester Acrylic Adhesive Tape
Colored PET electrical tape with acrylic pressure-sensitive adhesive for securing, insulation and identification.
View product →
ATR-GC-S SeriesGlass Cloth Silicone Adhesive Tape
Glass cloth tape with silicone pressure-sensitive adhesive for high-temperature insulation, fixation and process protection.
View product →APPLICATION REVIEW
Tell us what the tape needs to do.
Share the substrate, temperature and time, geometry, adhesion requirement, removal expectation and preferred roll or converted format. The relevant technical data will be provided after we confirm the product and application context.
