Specialty Films / Thermal Management
Thermally Conductive Polyimide Film
A thin, flexible interface for heat transfer and electrical isolation.
One Material · Two Functions
Move heat. Keep electrical separation.
Heat-Generating ComponentHeat source
→Thermally Conductive Polyimide FilmThermal transfer + electrical isolation
→Metal Heat SinkHeat dissipation

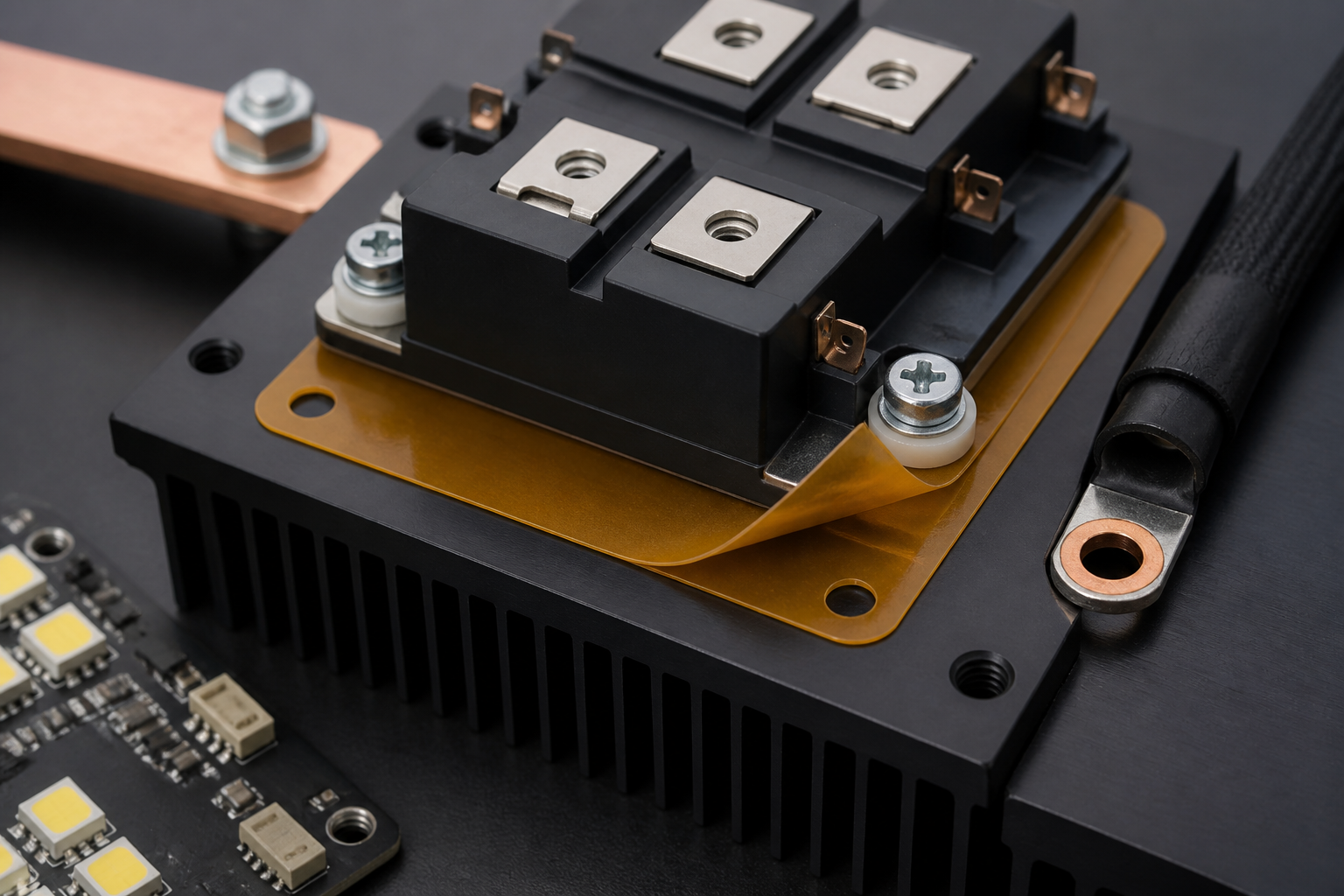

Where the Film Works
A functional layer inside the assembly.
The film is placed between a heat-generating component and a metal heat-dissipation structure. Final performance depends on the selected film, interface condition and complete assembly design.
01Power Module
02Thermally Conductive Polyimide Film
03Heat Sink
Application Focus
Designed around the assembly.
LED Assemblies
Compact thermal paths
Battery Systems
Insulation and heat control
Electrical Components
Flexible thermal insulation

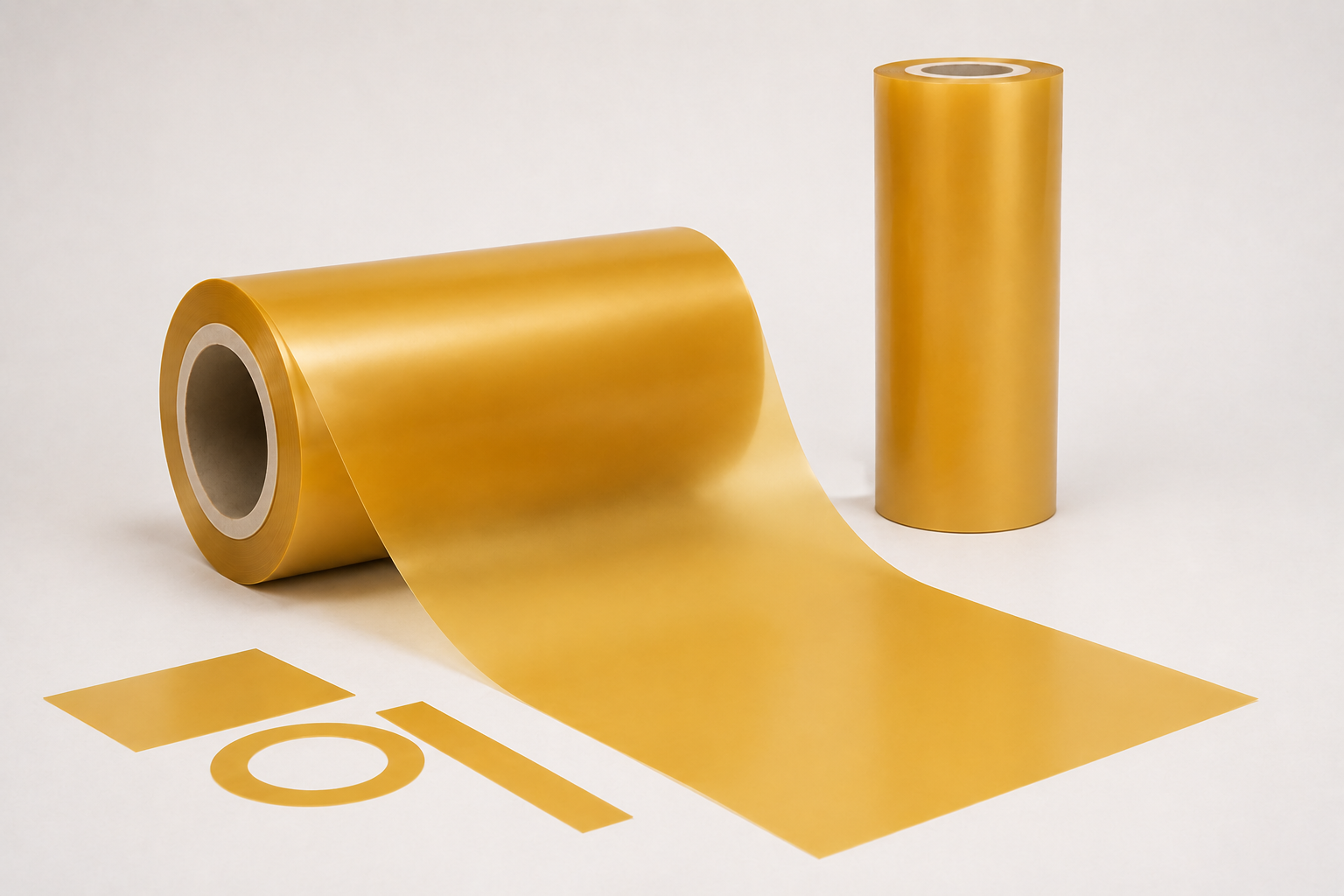

Available Forms
Supplied for the way you use it.
Final format is aligned with the converting process and assembly requirements.
Rolls
Sheets
Die-cut Parts
What We Confirm
Four inputs shape the material direction.
- 01ApplicationWhere the film is used
- 02Operating ConditionsHeat · voltage · pressure
- 03Material ConstructionThickness · surface · format
- 04Application ValidationConfirm in the actual assembly
Technical Data on Request
Data for the selected grade.
Technical values depend on the selected grade, thickness and construction. The relevant technical data can be provided after the application requirements are confirmed.
Request Technical Data- 01Thermal Properties
- 02Electrical Properties
- 03Mechanical Properties
- 04Dimensional Stability
- 05Surface and Appearance
Related Applications
Connect the film with its working conditions.
Related Products

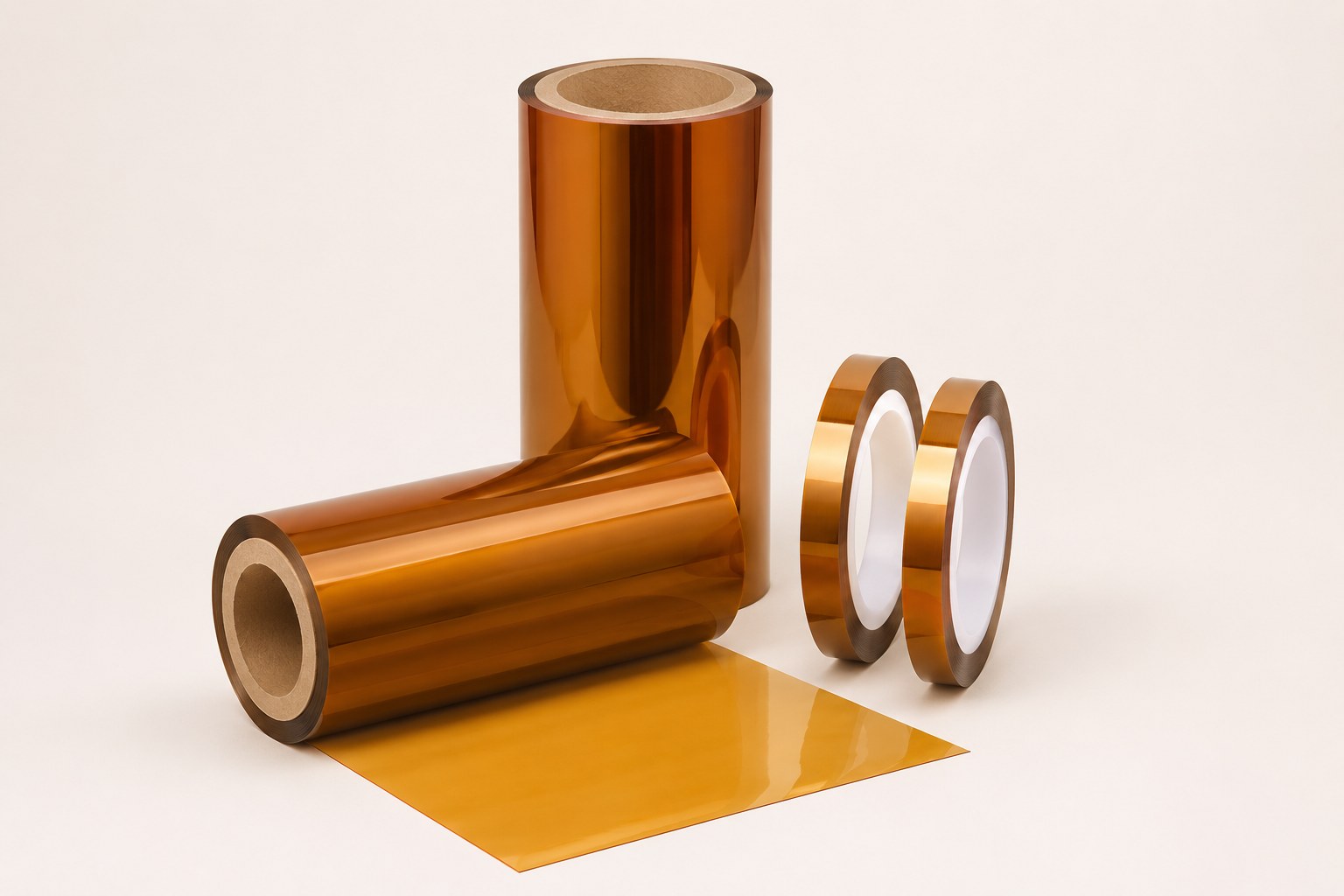

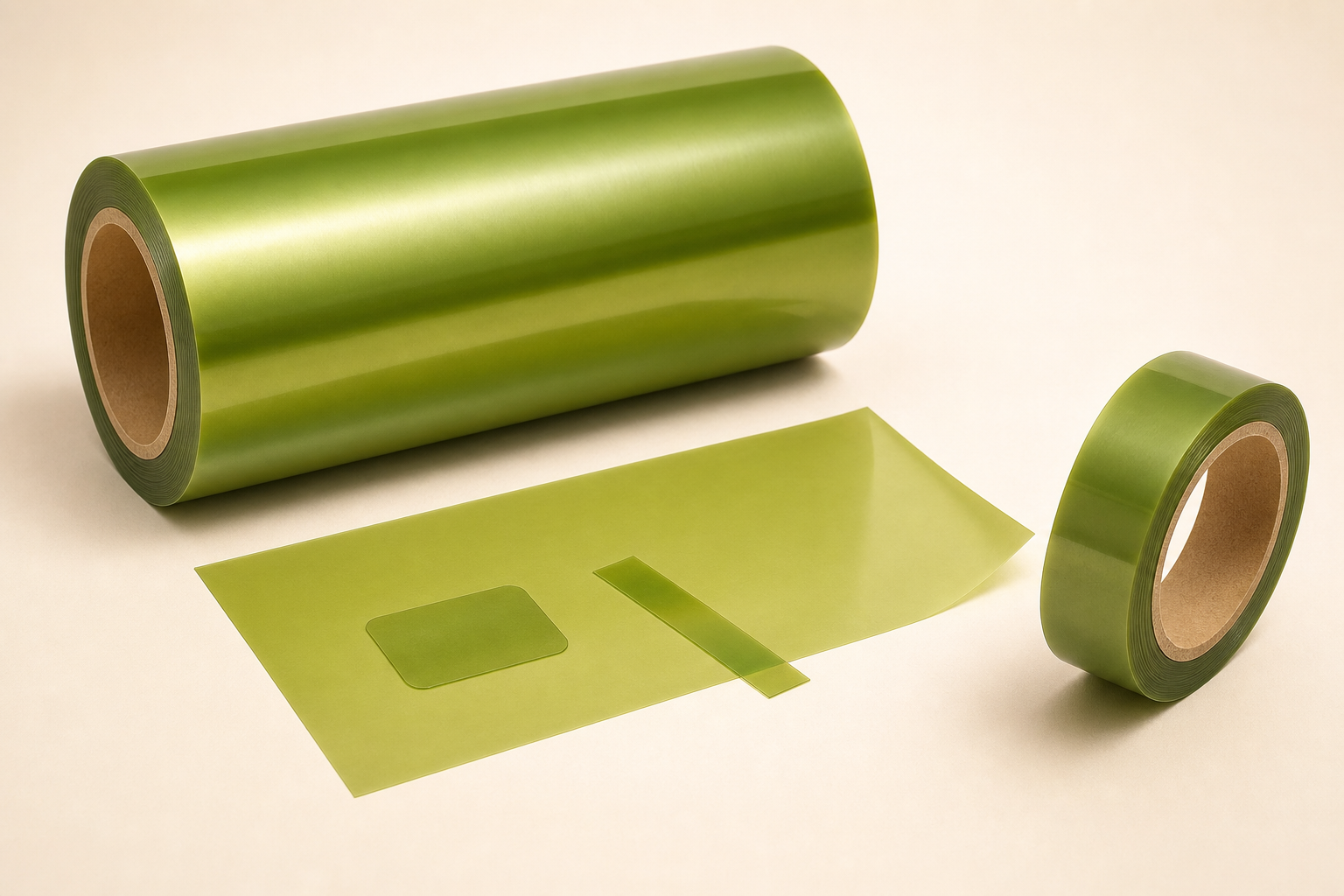

Compare other polyimide film directions.
Your Application Comes First
Start with the application—not a generic data table.
Share the intended use, operating conditions, required format and key concerns. We can discuss the suitable material direction and provide the relevant technical document.
