Release behaviour
PTFE creates a non-stick contact layer at validated rollers and process surfaces.
ATR-TF SERIES · LOW-FRICTION PTFE SURFACE
PTFE Film Tape
PTFE film with silicone pressure-sensitive adhesive for non-stick process surfaces, low-friction guidance and heat-resistant electrical wrapping.
BackingPTFE film backing
AdhesiveSilicone pressure-sensitive adhesive
SupplyRolls & converted parts
01 · THE MATERIAL SYSTEM
A PTFE surface that can be placed exactly where the process needs it.
ATR-TF turns the release, friction and insulation characteristics of PTFE film into an adhesive-backed material for selected industrial interfaces.
The tape is evaluated as a complete system: the PTFE surface performs the contact function, while silicone PSA maintains placement through the intended process. Load, edge condition, temperature, dwell and removal expectation remain application-specific.
02 · PERFORMANCE IN CONTEXT
What this construction helps an engineer control.
Low-friction guidance
The film helps reduce sliding resistance on compatible guides and wear points.
Thermal process support
The construction is suited to elevated-temperature tasks after cycle validation.
Electrical insulation
PTFE contributes dielectric separation for selected wire, cable and coil interfaces.
Conformable placement
The thin film follows controlled curves and local component geometry.
03 · APPLICATION DIRECTIONS
See the tape at its functional interface.
Representative tasks are drawn from the supplied product documentation. They identify the tape role without prescribing a universal customer construction.
SLIDING INTERFACE
Guide and sliding surfaces
Applies a low-friction PTFE face to selected guides and contact regions where drag must be controlled.
ELECTRICAL PROTECTION
Heat-resistant wrapping
Supports local wire, cable, coil or harness insulation without prescribing a universal winding method.
WEB PROCESSING

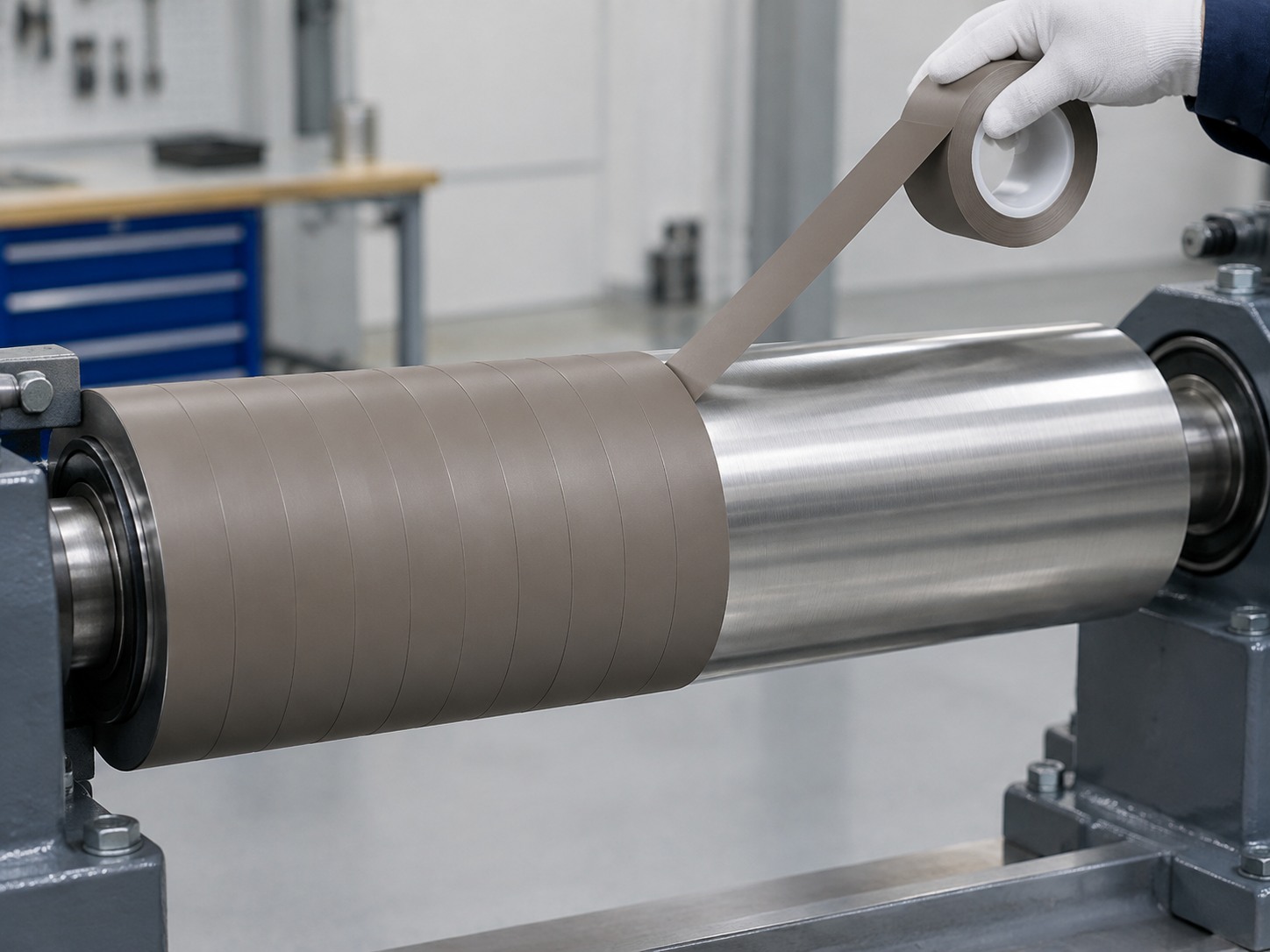

Non-stick roller surfacing
Provides a replaceable release surface on selected roller contact zones after pressure and temperature review.
Actual temperature resistance, residue and service life depend on grade, surface, pressure and exposure time.
04 · TAPE CONSTRUCTION
Backing and adhesive designed as one system.
PTFE film provides the functional contact surface. Silicone PSA holds it on compatible substrates through the validated process profile.
- PTFE filmNon-stick surface, low friction and electrical insulation.
- Silicone PSAElevated-temperature adhesion and conformable contact.
Illustration is enlarged for identification and does not represent actual layer-thickness ratio.
05 · SELECTION CONTEXT
The right grade starts with the process.
Bonding surface
Material, finish, cleanliness and surface energy
Thermal profile
Peak temperature, dwell time and repeated exposure
Application geometry
Flat face, edge, curve, winding or converted shape
Functional duty
Mask, insulate, secure, protect or reinforce
End condition
Remain in the assembly or remove after processing
Supply format
Width, length, core, liner, geometry and packing
06 · SUPPLY & CONVERTING
From master roll to placement-ready part.
Supplied in master and slit rolls, with final width, length, core and packaging confirmed for the customer equipment and handling method.
- Formats
- Master rolls and slit rolls
- Width
- Custom slit widths
- Core
- Confirmed by order
- Packaging
- Cartons and pallets
07 · APPLICATION PATHWAYS
Continue from the tape task to the wider material system.
01
Non-stick Contact Surfaces
A smooth PTFE film face for selected release and surface-protection interfaces.
Explore application →02Rollers & Guides
Conformable film surfacing to help reduce drag on selected rollers and guide faces.
Explore application →03Heat-Sealing Equipment
A replaceable non-stick film layer on selected heat-sealing contact surfaces after cycle validation.
Explore application →OTHER ATERANE PRODUCTS
Compare adjacent tape constructions.
ATR-PIS SeriesPolyimide Silicone Adhesive Tape
Amber polyimide film tape with a heat-resistant silicone pressure-sensitive adhesive for process masking, electrical insulation and precision converting.
View product →
ATR-PIA SeriesPolyimide Acrylic Adhesive Tape
Polyimide film tape with heat-resistant acrylic pressure-sensitive adhesive for electrical insulation, securing and precision converting.
View product →
ATR-PET-S SeriesPolyester Silicone Adhesive Tape
PET film tape with heat-resistant silicone pressure-sensitive adhesive for temporary process masking and surface protection.
View product →APPLICATION REVIEW
Tell us what the tape needs to do.
Share the substrate, temperature and time, geometry, adhesion requirement, removal expectation and preferred roll or converted format. The relevant technical data will be provided after we confirm the product and application context.
